手動切換閥 DMT-03 / DMG-03
手動切換閥 Manual Switching Valve / DMT-03 / DMG-03 Series
手動切換閥 / Manually Operated Directional Valves DMT-03-3C6 / DMD-03
仕樣 MODEL : DMT-03 / DMT-03-3C6 / DMG-03/ DMD-03

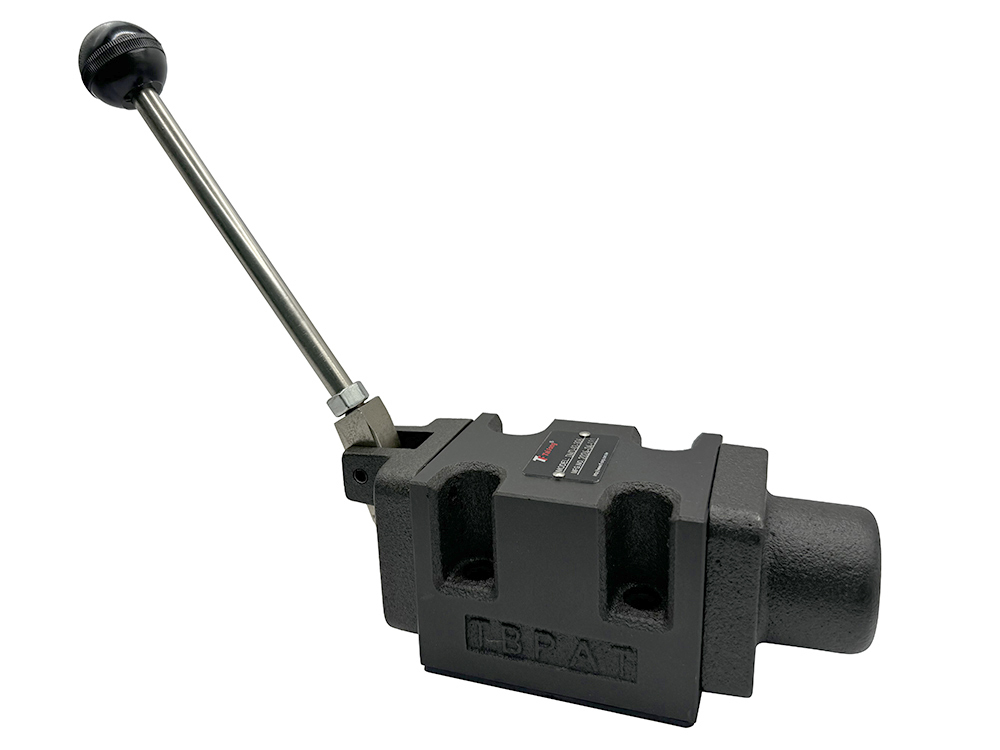

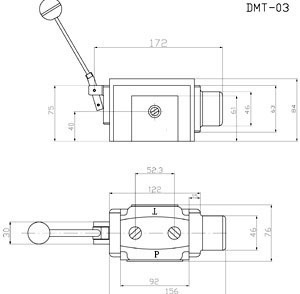

DMT-03 / (Thread Type) / T (配管式) / C (彈簧式) / D (珠子式)

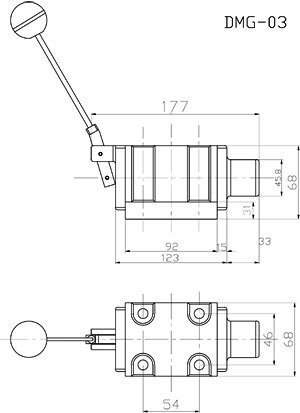

DMG-03 / Sub-Plate Type (座墊式)
T配管彈簧式 Piping Type / C 座墊彈簧式 Seat Cushion Spring Type / D 配管珠子式 Piping Ball Type
|

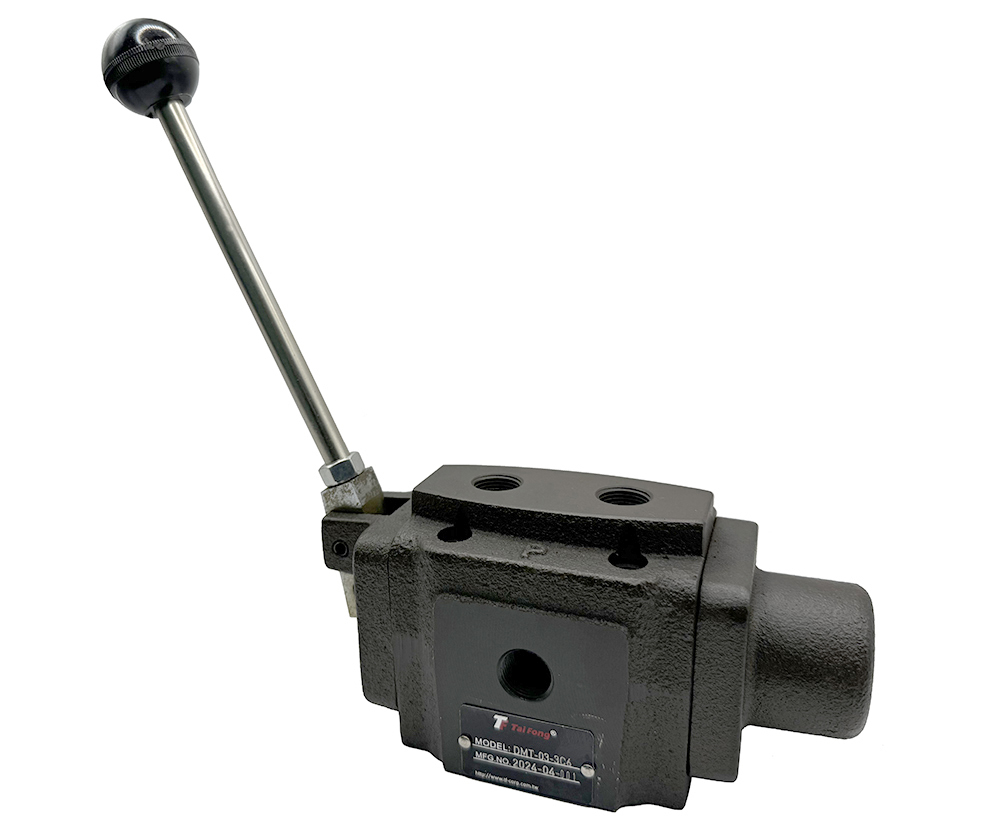

DMT-03-3C6
|
DMD-03
|
DMT-03-3C6 , DMG-03-3C6
性能表 / SPECIFICATION
|
型式 Model |
最大流量 Max. Flow (ℓ/min) |
最高使用壓力 Max. Operated Pressure (kgf/cm²) |
容許背壓 Allowed Back Pressure (kgf/cm²) |
重量 Weight (kg) |
||||
|
配管彈簧式 Piping Spring Type |
配管珠子式 Piping Ball Type |
座墊彈簧式 Seat Cushion Spring Type |
配管式 Piping Type |
座墊式 Seat Cushion Type |
||||
|
|
DRT-03-3D2 |
DMG-02-2C2 |
50 |
|
70 |
20 |
3.4 |
2.0 |
|
DMT-03 |
DMT-03-2D2 |
DMG-03-2C2 |
|
50 |
250 |
100 |
4.6 |
3.7 |
|
DMT-03-3C2 |
DMT-03-3D2 |
DMG-03-3C2 |
||||||
|
DMT-03-3C3 |
DMT-03-3D3 |
DMG-03-3C3 |
||||||
|
DMT-03-3C4 |
DMT-03-3D4 |
DMG-03-3C4 |
||||||
|
DMT-03-3C6 |
DMT-03-3D6 |
DMG-03-3C6 |
||||||
|
DMT-04* |
DMT-04* |
|
100 |
|
250 |
140 |
6.9 |
|
|
DMT-06* |
DMT-06* |
|
180 |
|
250 |
140 |
10.9 |
|
|
DMT-10* |
DMT-10* |
|
300 |
|
250 |
140 |
23.0 |
|
*註 : 最大流量隨閥的型式不同而異，在中立位置、P孔與T孔相通的型式即 3C3 , 3C6, 其流量較小。
* Remark: Max. flow differs with different spool types 3C3, 3C6 type’s flow will be smaller.
