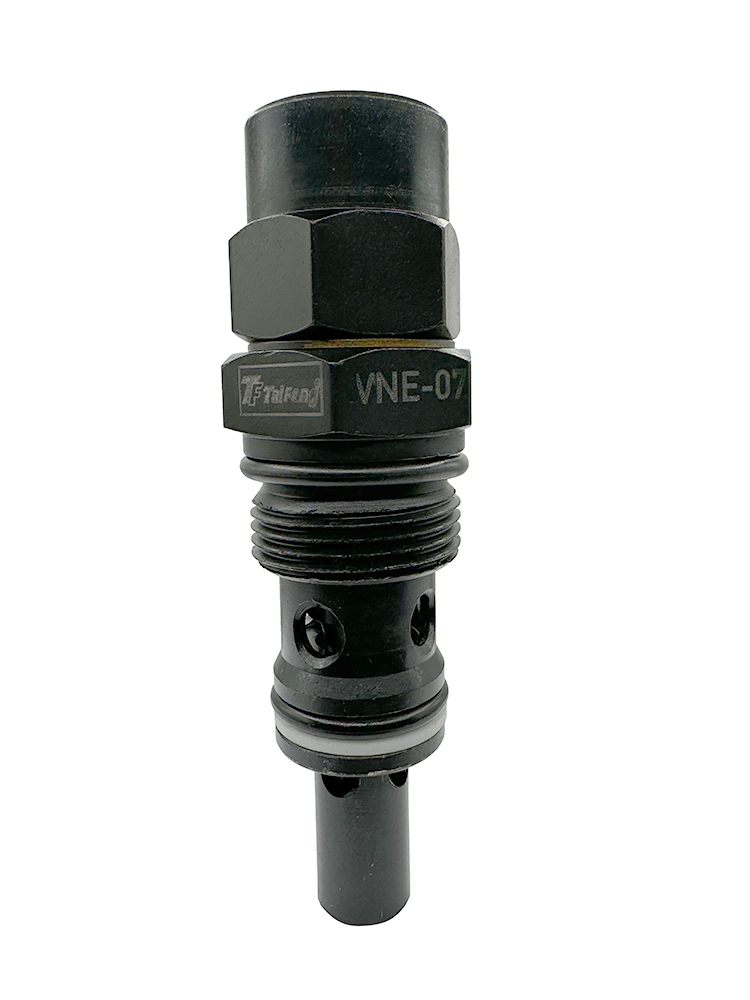

插入式調壓閥 TFV-07
插入式調壓閥 Insert-type Pressure Control Valve
Plug-in Pressure Regulating Valve TFV-07 / VNE-07 Series
仕樣 MODEL : TFV-07 / VNE-07
規格 SPECIFICATIONS
|
型式號碼 Model Number |
最高使用壓力 (Bar) Maximum Pressure |
最大流量 lpm Maximum Flow |
重量 (Kg) Weight |
|
TFV-07 |
350 (5076 psi) |
60 (15.85 gpm) |
0.2 (0.4 lbs) |
|
流體型式 Fluid Type |
ISO VG 32, 46, 68 |
||
|
黏性 (cSt) Viscosity |
10 ~ 400 (59 ~ 1854 SSU) |
||
|
操作溫度 ℃ Operating Temperature |
- 15 ~ 70 ( -5 ~ 158 ﾟF ) |
||
|
汙染標準 Contamination Level |
ß 10 ≥ 75 , Under NAS Class 12 , 25µ |
||

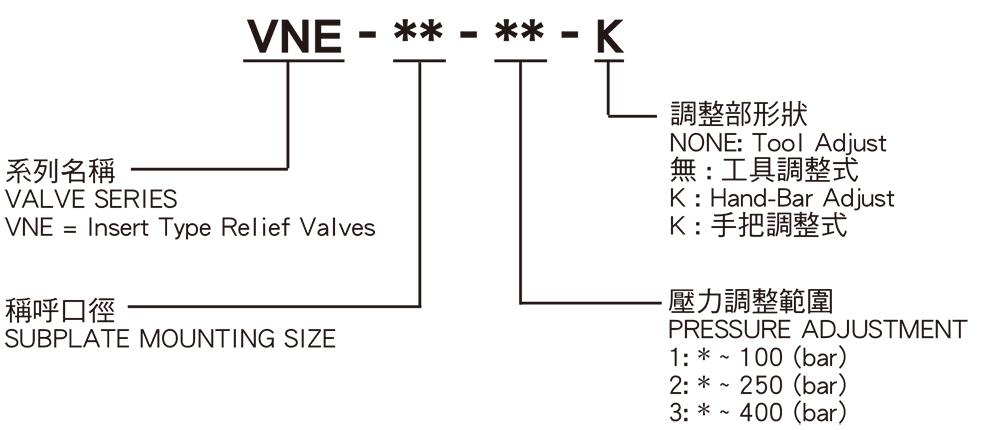

VNE-07_MODEL.pdf
