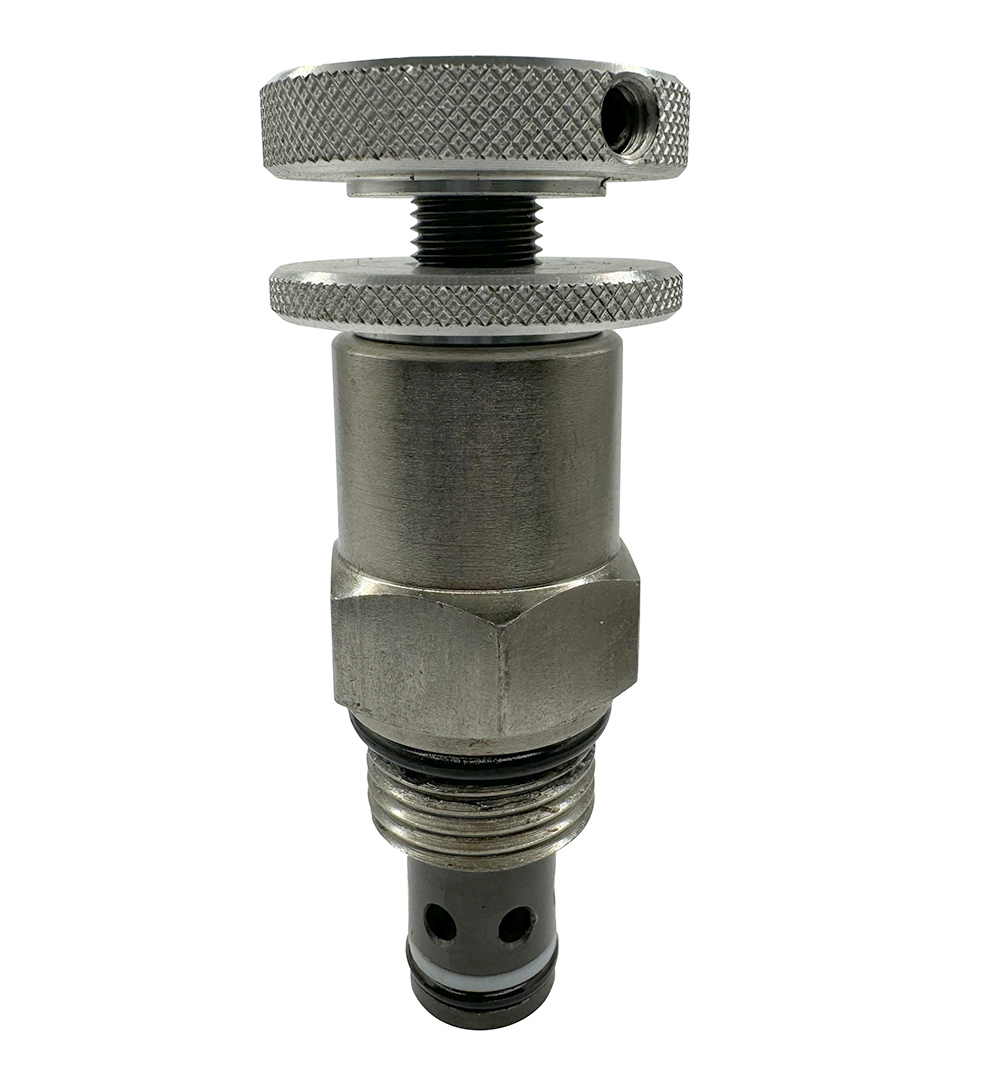

Plug-in Pressure Regulating Valve TFV-04
Plug-in Pressure Regulating Valve TFV-04 / VNE-04

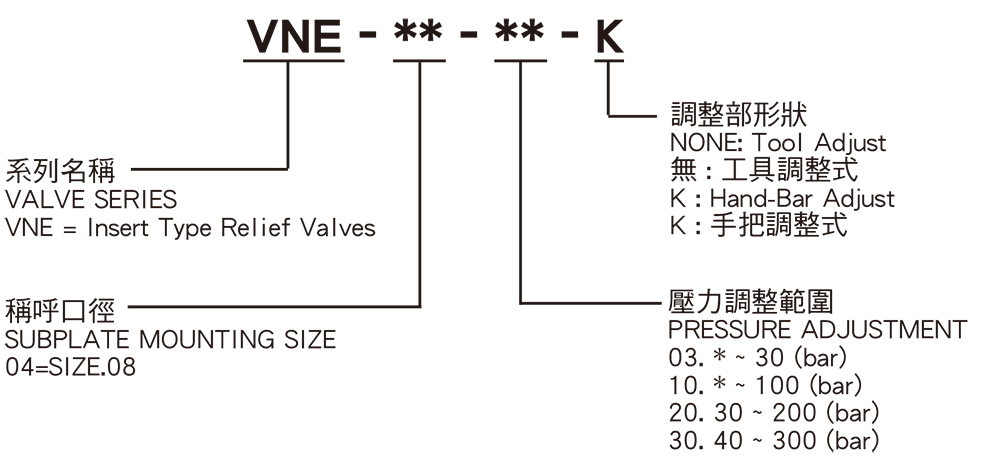

MODEL : TFV-04 / VNE-04
SPECIFICATIONS
|
Model Number |
Maximum Pressure |
Maximum Flow( lpm) |
Weight (Kg) |
|
TFV-04 |
250 (3625 psi ) |
20 (5.28 gpm) |
0.1 (0.2 lbs) |
|
Fluid Type |
ISO VG 32, 46, 68 |
||
|
(cSt) Viscosity |
10 ~ 400 (59 ~ 1854 SSU) |
||
|
℃ Operating Temperature |
- 15 ~ 70 ( -5 ~ 158 ﾟF ) |
||
|
Contamination Level |
ß 10 ≥75 , Under NAS Class 12 , 25µ |
||

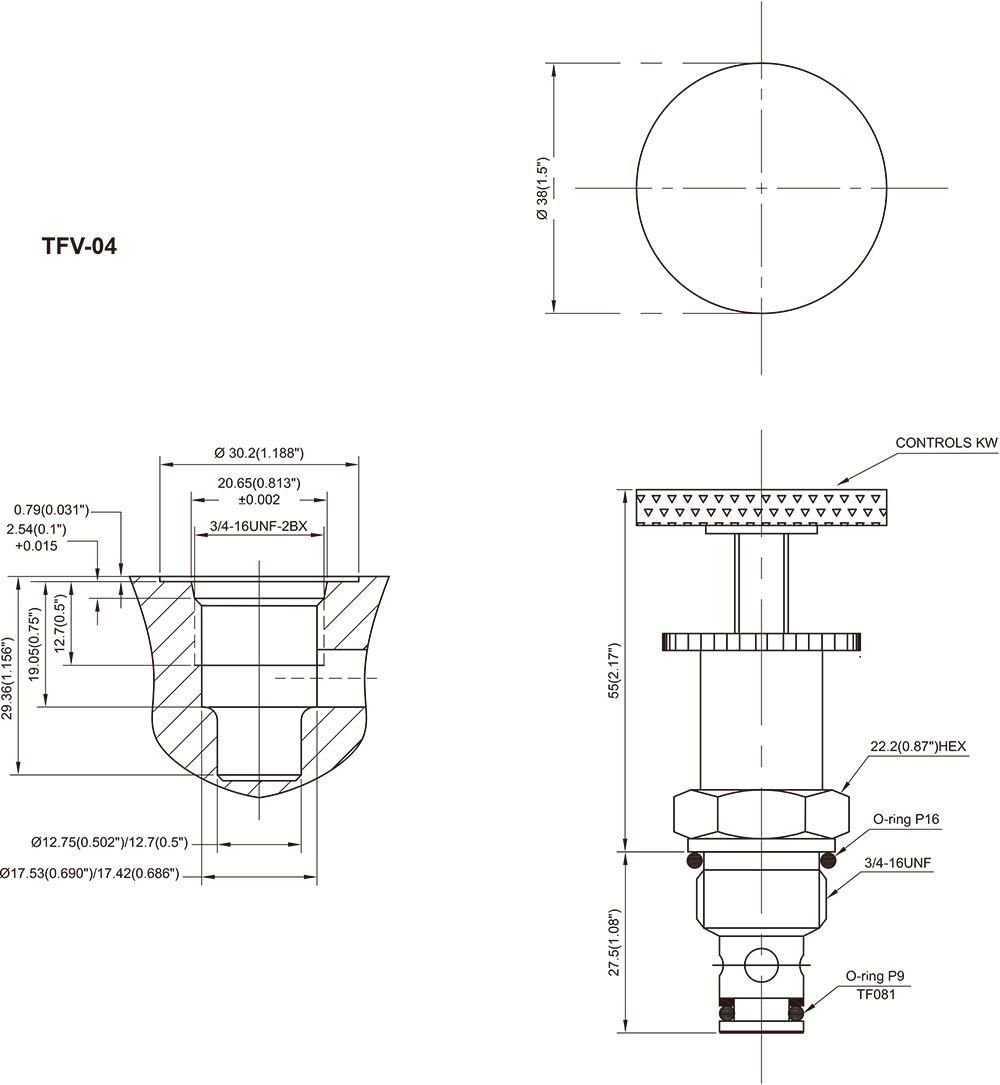

DIMENSIONS
