Pressure Regulating Valve DG-02/ RV-02 Series
Conventional Valve
Pressure Regulating Valve DG-02 / RV-02 Series

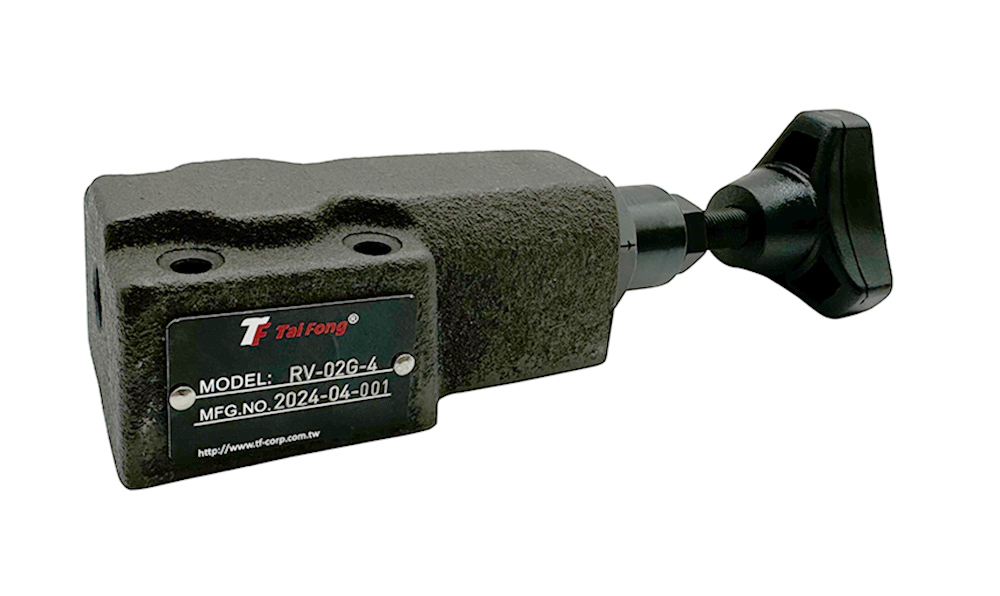

Pressure Regulating Valve -- DG-02/ RV-02 / RV-02G-4

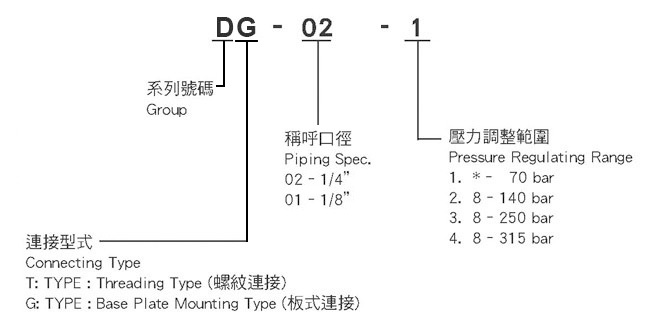

MODEL : (DG-02 , RV-02)
SPECIFICATION
|
Model Number |
Rated Pressure |
Rated Flow |
Connecting PT. |
N.W. (KG) |
|
|
T.Type |
G.Type |
||||
|
DG-01*-*-30 |
315 kgf/cm² |
2 ℓ/min |
¼” |
1.4 |
1.5 |
|
DG-02*-*-30 |
315 kgf/cm² |
16 ℓ/min |
¼” |
1.4 |
1.4 |
ACCESSORIES (G TYPE)
|
Model Number |
Hex. Counter-Sink Screw |
|
DG-01-30 |
M5 x 0.8 x 40L (4pcs) |
|
DG-02-30 |
M5 x 0.8 x 40L (4pcs) |

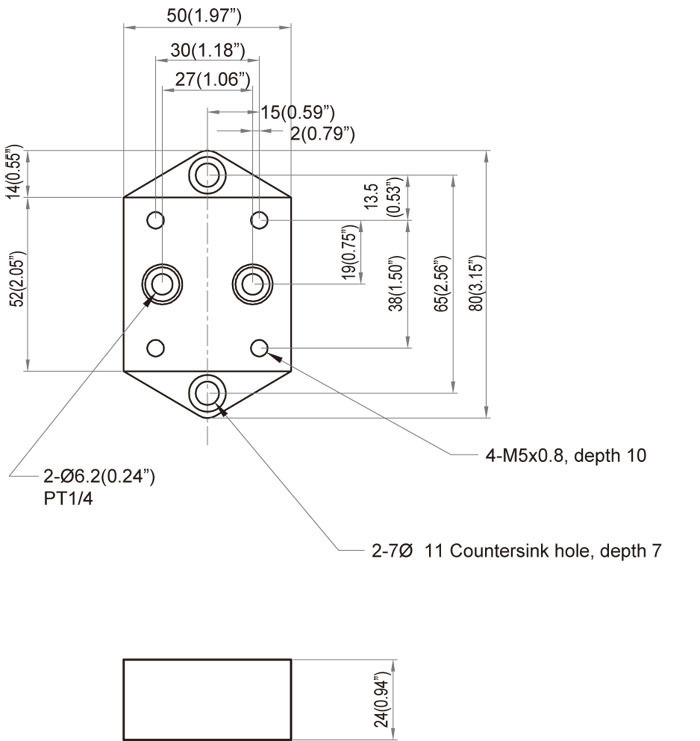

DIMENSIONS FOR BASEPLATE

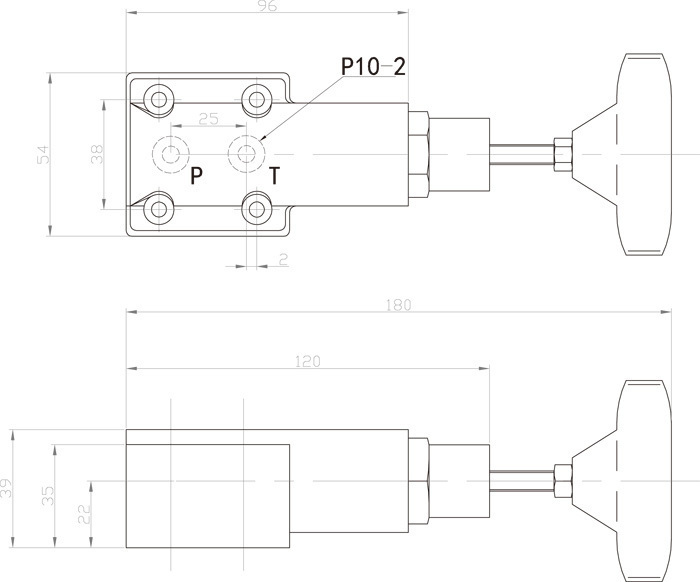

DIMENSIONS
RV-02

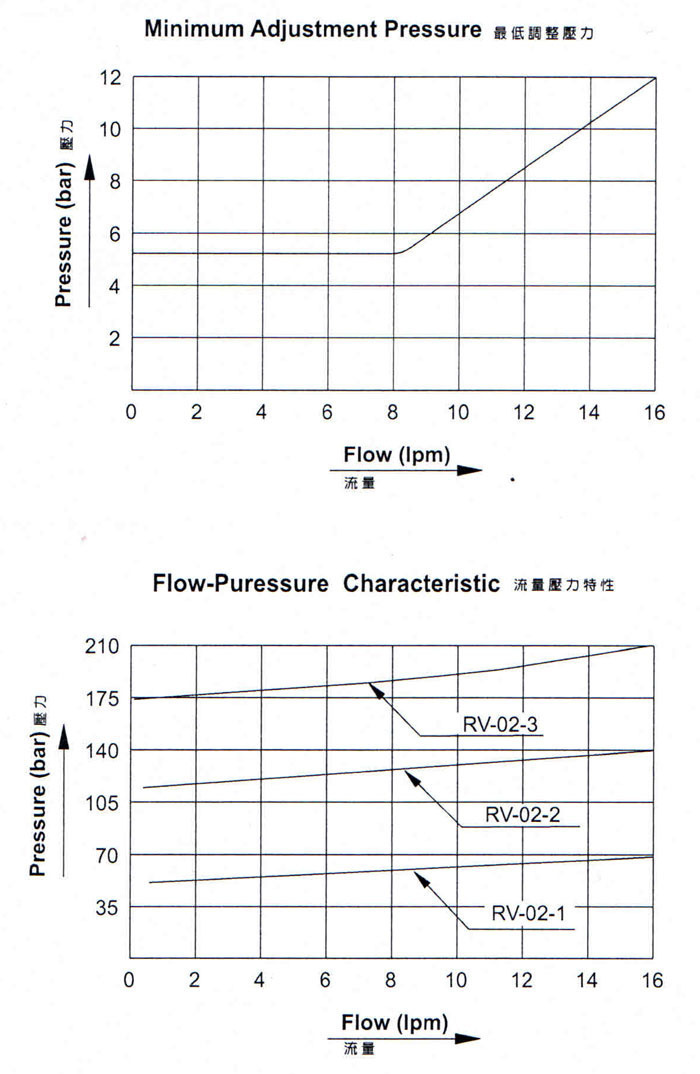

性能 / PERFORMANCE
