Check Valve CRG/CV Series
Conventional Valve
Check Valve CRG/CV Series
CRG-06 Model: CRG-06-10 / CRG-06-20 / CV-06G-50-10 / CV-06G-05-20
CRG 03 Model: CRG-03-10 / CRG-03-20 / CRG-03G-05 / CV-03G-05-10 / CV-03G-50-20

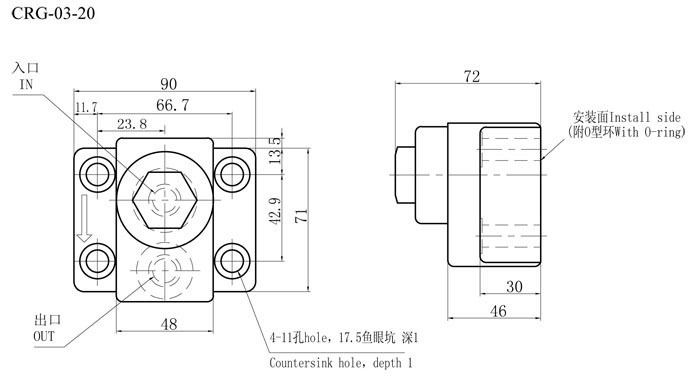

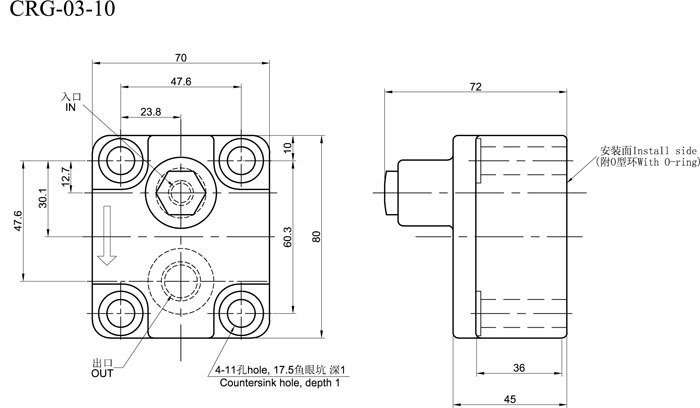

CRG-03 SERIES / Check Valve CRG- 03 Series -- BASE PLATE MOUNTING TYPE
|

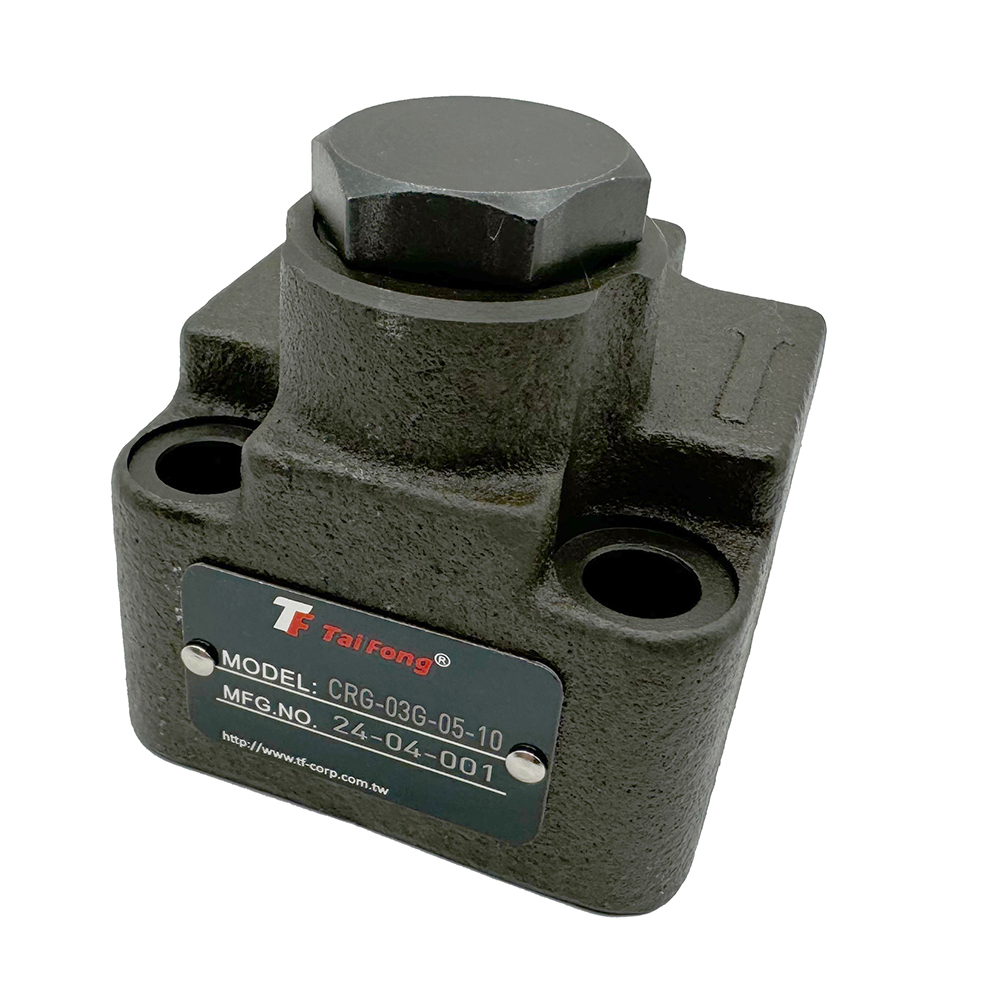

CRG-03G-05-10 |

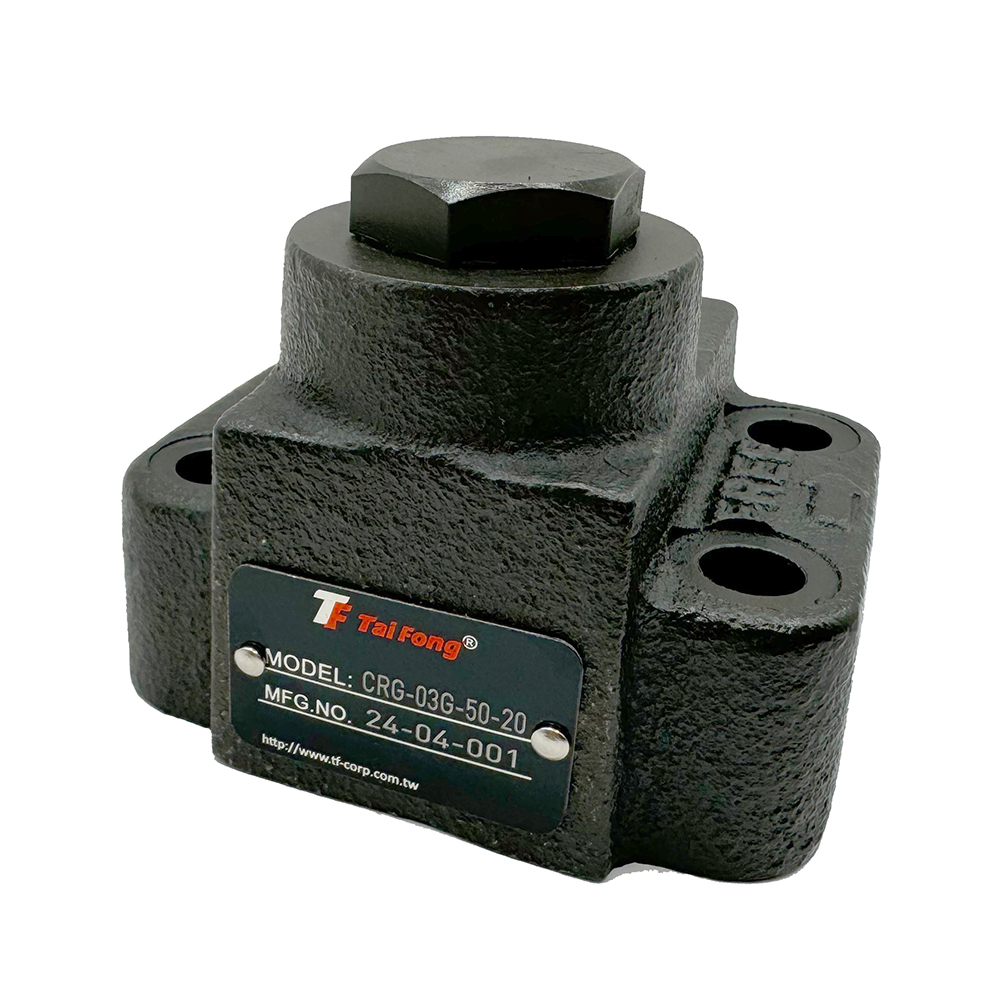

CRG-03G-50-20 |

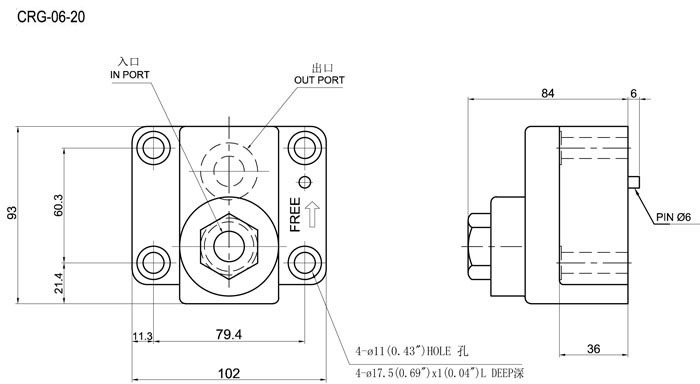

CRG-06 SERIES / Check Valve CRG- 06 Series -- BASE PLATE MOUNTING TYPE
|

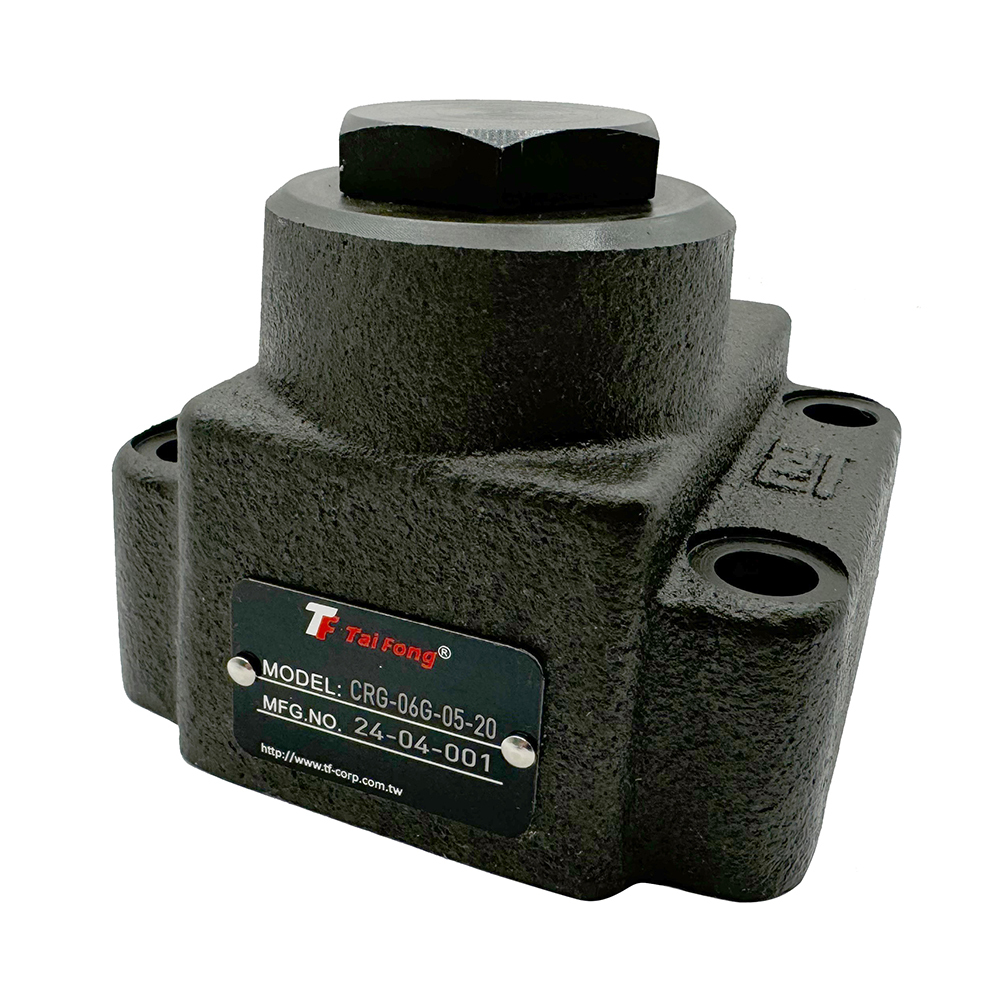

CRG-06G-05-20 |

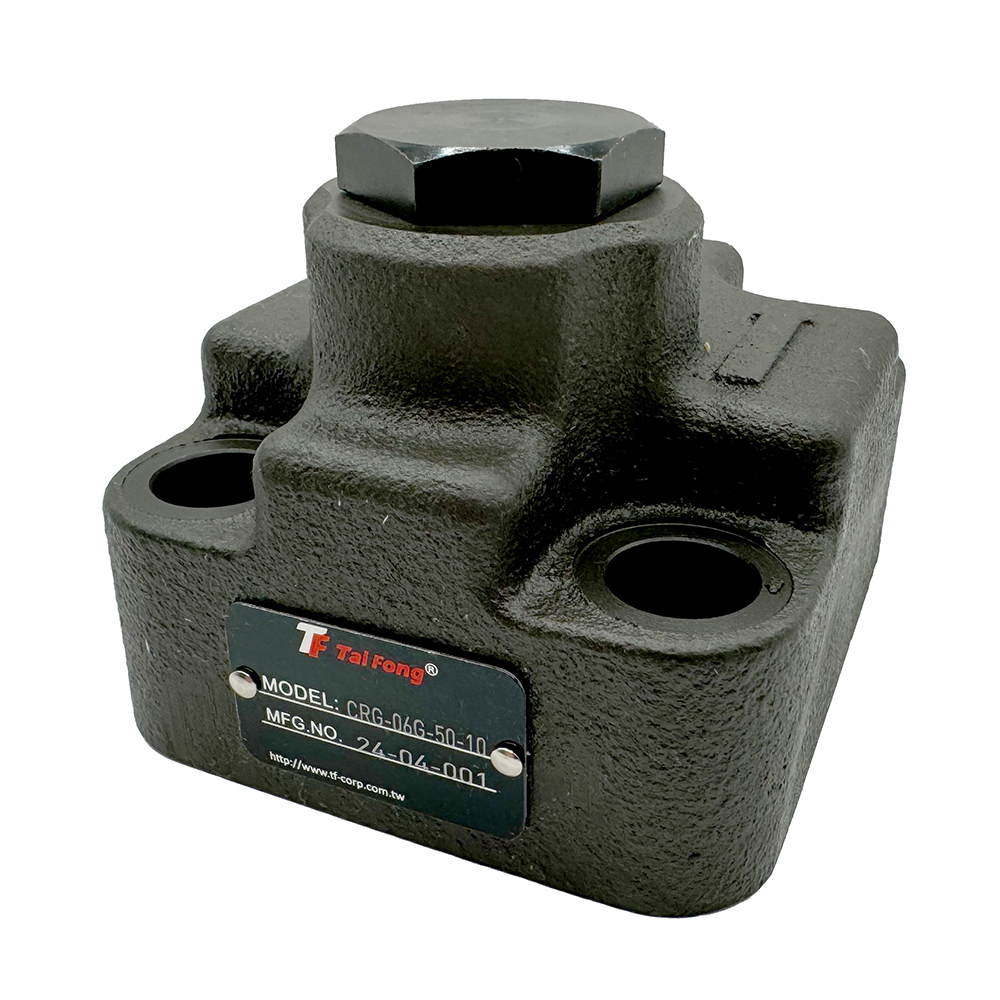

CRG-06G-50-10 |

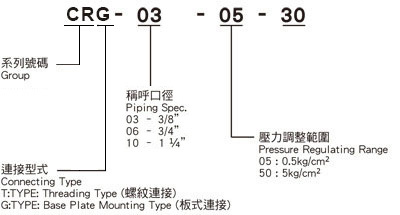

SPECIFICATION / MODEL NUMBER DESIGNATION
| Model Number | Rated Pressure | Rated Flow |
|
CRG-03*-*-30 |
210 kgf/cm² |
30 ℓ/min |
|
CRG-06*-*-30 |
100 ℓ/min |
|
|
CRG-10*-*-30 |
250 ℓ/min |
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
N |
P |
Q |
|
CRG-03 |
68 |
47.6 |
23.8 |
47.6 |
30.1 |
12.7 |
80 |
60.3 |
10 |
72 |
55 |
46 |
11 |
17.5 |
|
CRG-06 |
98 |
65.1 |
32.6 |
68.2 |
40.5 |
22.2 |
114 |
80.9 |
16.5 |
81 |
53 |
38 |
17.5 |
26 |
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
|
CRG-03-50 I |
90 |
66.7 |
11.7 |
72 |
42.9 |
17.5 |
72.5 |
31 |
|
CRG-06-50 I |
102 |
79.4 |
11.3 |
93 |
60.3 |
21.4 |
84 |
36 |
